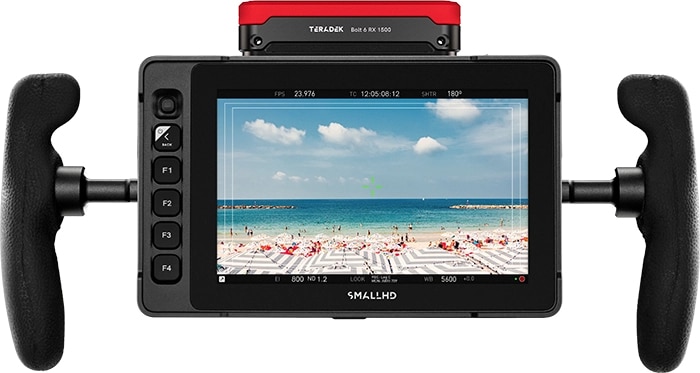

SmallHD Ultra 7 monitor with Bolt 6 1500 receiver

Specifications
Brand
SmallHD
Display size
7″
Display type
IPS LCD touchscreen
Display resolution
1920×1200px
Brightness
2300 nits
Color depth
10-bit Processing (8-bit panel)
Video inputs
2× 6G-SDI

1× HDMI 2.0

Range
450 m (aprox)
DFS Frequencies
5.270~5.670 GHz
Teradek compatibility
Teradek Bolt 4K

Teradek Bolt 6

Key functions
Pixel Zoom
Custom Scale
Anamorphic De-Squeeze
Image Rotate & flip
Cross Conversion
Focus Assist
Peaking
False Color
Zebra
Waveform
Vectorscope
RGB Parade
Histogram
Image Capture
LUTs
Color Pipe
Audio Meters
Power
12~15V
Consumption
34 W
Dimensions
21×13×35cm
Weight
0,9 Kg
Visit SmallHD’s website for more information
Description

The SmallHD Cine 7 is a 7″ touchscreen that in with an integrated Teradek Bolt 6 receiver.



Key features:
  • Integrated Teradek Bolt 6 RX
  • Ultra Bright (2300 nits)
  • Ultra Durable
  • 6G-SDI to ingest 4K signal
  • Front customizable function buttons
  • V-mount batteries feed
  • Handles, and Neck Strap
