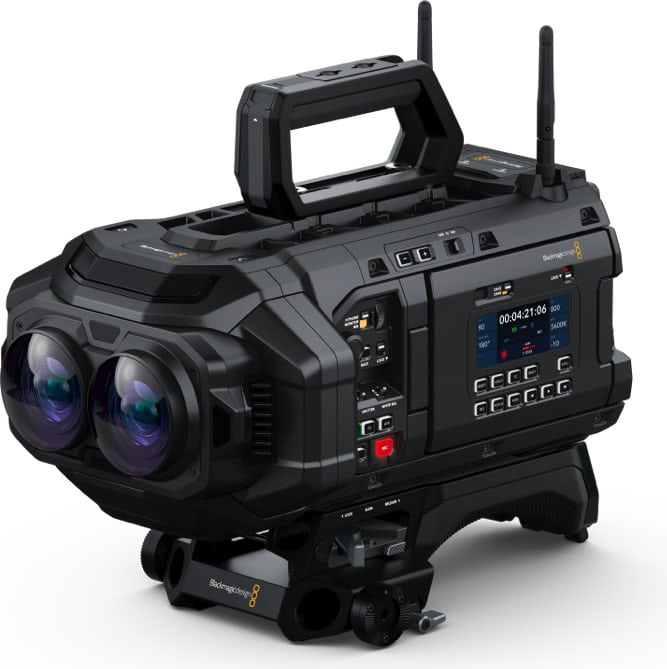

Blackmagic URSA Cine Immersive 100G camera

Blackmagic URSA Cine Immersive 100G Specifications

Brand

Blackmagic

Sensor

2× 8K Sensors

Sensor resolution

8160×7200 px (each sensor)

Sensor format

1.13:1 (each sensor)

Dynamic range

16 stops

Built-in filters

ND IR: clear, 2, 4, 6 and 8 stops

Max. framerate

90fps / 8K

Lens

2× Prime lenses (FOV +180º)

Connectivity

Bluetooth

WiFi

Video outputs

2× 12G-SDI

Recording format

Blackmagic RAW

Recording media

8TB Removable Media Module

Power

24V DC

Dimensions

22,6×36×28cm

Weight

5,4Kg

Blackmagic URSA Cine Immersive 100G



SKU: URSA-180 Categories: , Tags: , , , , ,
Description

Rent the Blackmagic URSA Cine Immersive 100G

An immersive 180° camera for live production and cinema

The Blackmagic URSA Cine Immersive 100G is a professional camera designed for 180° immersive production.

Equipped with two 8K sensors, two fixed lenses for a +180° field of view, and up to 16 stops of dynamic range, this camera is designed to capture immersive content with a level of detail, synchronization, and image quality suitable for both cinematic workflows and live production.

Additionally, the URSA Cine Immersive 100G stands out for its integrated 100G Ethernet and SMPTE 2110 connectivity, making it a particularly advanced solution for broadcast environments, immersive live events, and productions that need to move large volumes of data at maximum speed.

Designed for professional immersive production

The Blackmagic URSA Cine Immersive 100G has been specifically developed for capturing stereoscopic immersive content, featuring a system composed of two sensors (left eye and right eye), independent optical calibration per eye, and dedicated monitoring for each signal.

Its design addresses the real-world needs of current immersive production, where precision between both eyes, system stability, and the final quality of the material are critical factors.

This camera records immersive 8K stereo, with a resolution of 8160 x 7200 per eye, and supports frame rates of up to 90 fps.

Thanks to this, it offers a capture workflow prepared for high-level immersive productions that require cinematic quality and technical performance.

180° stereoscopic capture with dual 8K sensors

One of the major differentiators of the Blackmagic URSA Cine Immersive 100G is its dual 8K sensor system with synchronization between the left and right eye. This architecture allows for the generation of immersive stereo content with high visual fidelity, maintaining consistency in color, dynamic range, and alignment between both images.

The camera incorporates a pair of prime lenses that provide a field of view +180°, a solution specifically designed for immersive capture.

This is not about adapting a conventional camera for VR, but rather a system conceived for this production language from the ground up.

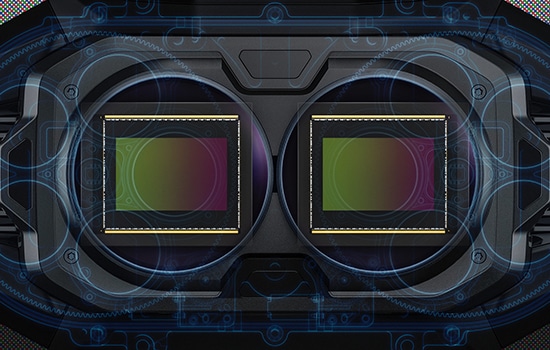

Image of the dual sensors of the Blackmagic URSA Cine Immersive 100G 180º immersive cinematography camera

16 stops of dynamic range and recording up to 90 fps in immersive 8K stereo.

In immersive applications, image quality does not depend on resolution alone. The Blackmagic URSA Cine Immersive 100G offers 16 stops of dynamic range, a key feature for preserving detail in highlights and shadows, especially in complex scenes or those with high contrast.

Added to this is the ability to record immersive 8K stereo at up to 90 fps, providing greater creative and technical flexibility depending on the type of production. Whether for motion-heavy scenes, premium immersive experiences, or projects that demand maximum playback smoothness, this capability clearly places the camera in a professional category

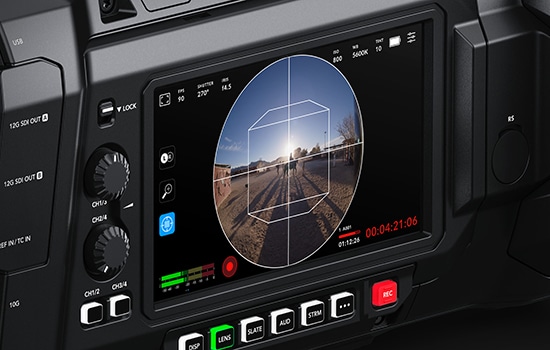

Image of the display of the Blackmagic URSA Cine Immersive 100G 180º immersive cinematography camera

Live production with 100G Ethernet and SMPTE 2110 output

One of the most distinctive aspects of the Blackmagic URSA Cine Immersive 100G is its focus on live immersive production. According to Blackmagic Design, it is the world’s first camera designed for live immersive production, and it integrates a 100G QSFP28 connection for IP video input and output under the SMPTE 2110 standard.

This connectivity allows the camera to be integrated into advanced production environments where low latency, IP signal management, and transfer speeds are essential. For broadcasters, studios, and production companies working with IP infrastructure, this specification positions the URSA Cine Immersive 100G as a unique tool within the current market.

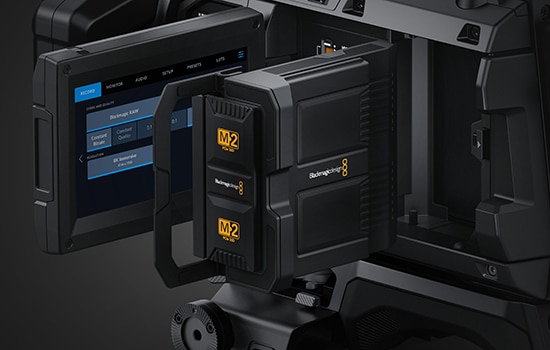

Image of the Blackmagic Media Modules for the Blackmagic URSA Cine Immersive 100G 180º immersive cinematography camera

Rent the Blackmagic URSA Cine Immersive 100G at Ovide

At Ovide, we offer the Blackmagic URSA Cine Immersive 100G for productions that need a state-of-the-art 180° immersive camera, capable of performing both in cinematic shoots and in live environments. It’s a high-end solution for projects that demand maximum image quality, precise stereoscopic synchronization, and connectivity designed for advanced workflows.

If you are looking for a professional 180° immersive camera with dual 8K sensors, 16 stops of dynamic range, recording at up to 90 fps, and 100G Ethernet / SMPTE 2110 connectivity, the Blackmagic URSA Cine Immersive 100G is one of the most innovative options on the market today.

At Ovide, we hire out equipment by the day, week, or month; available as camera body only or in a kit tailored to your production needs.

Our offices are located in Barcelona and Madrid, with further agents in Bilbao, the Canary Islands, Seville and Valencia.
